specification
| LED type | RGB 5050 SMD LED |
| Beam Angle | 125° |
| Luminous Flux(lm) | 3.5lm-18lm |
| LED Qty | 3 pcs |
| Working voltage | DC12V |
| Power(W) | 0.72W |

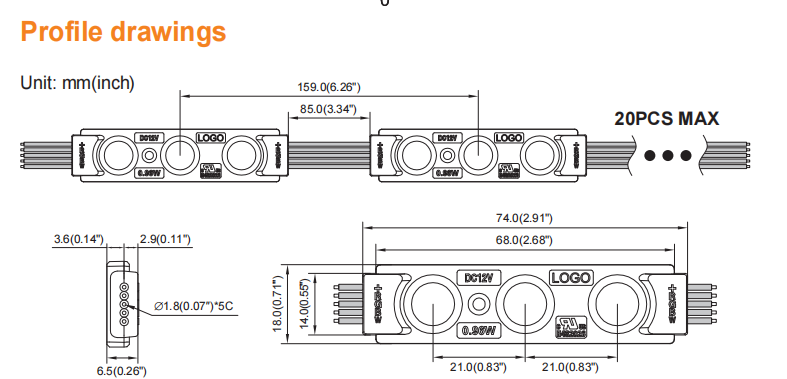

| Dimension | 74*18*6.5mm |
| Color | RGB |
| Working Temperature | -40---+60°C |
| Store Temperature | -40---+70°C |
| IP Grade | IP65 |
| Maximum length in serial connection | 20pcs |
Package
Every 20 pcs per a string,100pcs/bag ,2000pcs per a carton box.
Carton size:530*375*275mm
Gross Weight: 16KG/a caron box
Features
1.High effciency RGB5050 LED
2. Aluminum PCB with excellent heat dissipation
3.Transparent lens 140 degree protect the module damage
4. 3 years warranty

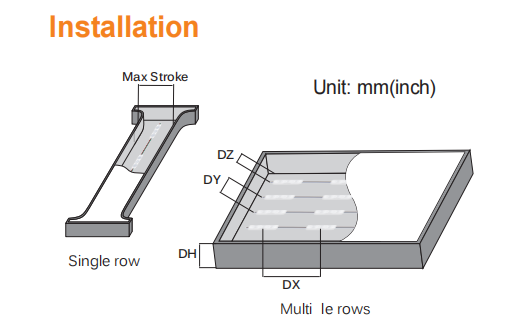

7.Suitable for 4-10" side-lighting lightbox
